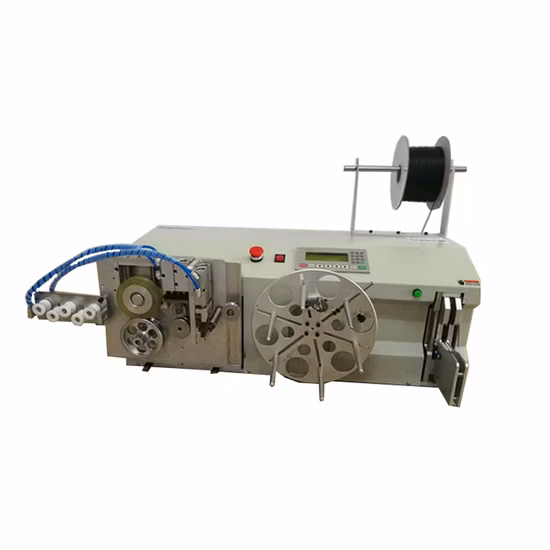

Countable Meter Winding and Binding Machine Wire Count Meter Winding and Binding Machine USB Cable Counting Machine

Basic Info.

Length of Cable Tie	80-140mm/110-190mm
Binding Diameter	10-30mm/20-45mm
Weight	80kg
Transport Package	Wooden Case
Specification	830*550*400mm
Trademark	Sinrad
Origin	China
HS Code	8479899990
Production Capacity	100 Sets/Month

Product Description

Countable meter winding and binding machine Wire count meter winding and binding machine USB cable counting machine

This machine is designed for winding and binding AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types cable.

Specification:

Support wire OD	Less 10mm
Winding diameter	can be adjustable
counting meter	can be adjustable (1-30meters)
Tying wire length	120-190mm
Binding wire Coil number	can be adjustable (suggest 3 circles)
winding speed	1-13circles/second
typing speading	0.6second/pc
Weight	80KG
Dimension(mm)	830X300X550mm
Safeguard	Fuse, fault equipment alarm shutdown function
Voltage	AC 220V, 50HZ/60HZ
Power	150W

Feature

1. The wire feeding mechanism uses: LR4GN18K motor set 2. Folding and cutting mechanism: LR2GN10K motor set 3. The twisting wire mechanism adopts: a set of stepping motor 4. The winding mechanism adopts: a set of stepping motors (110 stepping) 5. The control system uses: PLC + touch screen (maintenance control) 6. Sliding rail adopts: Japan NSK 7.A set of self-made racks and cases 8.Two sets of relays and one set of Omron sensors 9. A set of power transformer power supply system 10. The meter counting mechanism adopts the principle of pulling a rotary encoder 11. The wiring mechanism adopts: reciprocating row rack

The machine with a high efficiency, low labor costs, reduce staff work intensity, low noise and other environmental protection and a series of advantages.

Features:

(1) Multi-function:

Winding machine with PLC program control, through the front panel text display can be quickly and easily set the production process parameters. You can set the number of windings, tie length, tie the number of coils, the target output, and production statistics can be automatically generated, the operation is simple and easy to understand.

(2)Widely used:

The device uses plastic coated core wire, suitable for a variety of AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types of transmission lines tied into a bunch of work.

(3) Easy to operate:

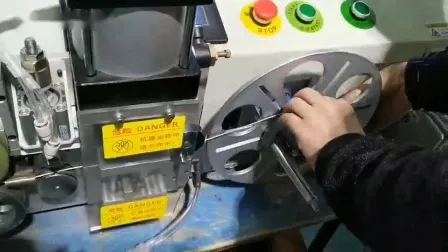

Staff first wire wound on the winding plate, and then remove the winding wire harness will be placed in the binding machine mouth, the machine automatically complete 1 second tie work.

Pictures:

Contact:

FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
